Pelonis Technologies' innovative compact blowers include standard designs and fully customizable TITAN series models. All are uniquely engineered for high quality, value, and performance to meet the needs of today's demanding applications.

TITAN series blowers are made for high end equipment designs that require application-specific customization. Because they include "Intelligent Motion Controls", these blowers increase end-system performance and ensure long-term reliability.

Rugged Performance

TITAN series blowers can be "ruggedized" with Ingress Protection (IP) parylene coatings to protect them from dust and moisture. Proprietary seal coatings used on the blowers' internal components also help protect equipment from harsh weather conditions in outdoor and extreme environments.

DC Blowers Quick Reference Table

Series Size V CFM M3/min mmAq inH2O dBA
RB5015 51 x 51 x 15mm
(2.0 x 2.0 x 0.59in)
5, 12, 24 2.4~4.4 0.11~0.96 3.5~11.5 0.14~0.45 30~41
Titan series
K5331-37
53 x 53 x 31mm
(2.09 x 2.09 x 1.22in)
12, 24 5~16 0.15~0.46 4.0~36.2 0.16~1.43 24~52
RB7530 75 x 75 x 30mm
(2.9 x 2.9 x 1.18in)
12, 24 6.9~13.5 0.20~0.38 3.9~17.7 0.15~0.69 28~45
RB9733 97 x 94 x 33mm
(3.82 x 3.70  x 1.30in)
12, 24, 48 14.0~21.9 0.39~0.62 7.6~20.8 0.23~0.82 40~50

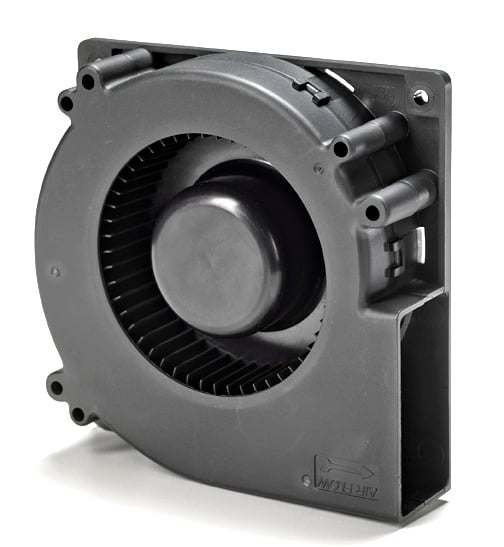

RB1232 120 x 120 x 32mm
(4.72 x 4.72 x 1.26in)
12, 24, 48 25.0~33.1 0.71~0.94 9.6~20.1 0.38~0.79 45~51
Titan series
P1232-28
120 x 112 x 32mm
(4.72 x 4.41 x 1.26in)
12, 24, 48 23~43 0.65~1.22 14.9~51.5 0.59~2.03 46~62
RB1881 182 x 171 x 82mm
(7.2 x 6.7 x 3.2in)
24, 48 136.8 3.87 63.8 2.51 63
Titan series
P1970-38
190 x 177 x 72 mm (7.60 x 6.97 x 2.83 in) 12, 24, 48 85~128 2.4-3.6 23-51 0.9-2 45-56

Download Our Blowers Summary Catalog for More Details

Intelligent Motion Controls

Download Our Free Intelligent Motion Controls eBook Intelligent Motion Controls are additional features that can be added to select DC blowers to help improve performance and efficiency.  Various controls include Tachometer, Rotation Detection, PWM speed control, Life Detection, and others.

This guide serves to educate end users on not only the engineering “how” of DC Blower intelligent motion controls, but also the “why,” including operating efficiency suitable for green applications, as well as improved system
performance, reliability and life expectancy.



TITAN series blowers include full-wave in-board circuit designs with multiple features that create air movement "intelligence". By using various controls that are programmable, voltage fluctuations from power supplies are reduced, protection is enhanced, and optimum performance is ensured. Up to fifteen innovative features are available, including:

  • Inrush Current Protection
  • Auto Start
  • Tachometer (Frequency Generator)
  • Rotation Detector
  • Rotation Detector (complement)
  • Life Detection
  • DC Voltage Signal Control (VPWM)
  • Current Source Signal Control (IPWM)
  • Pulse Width Modulation Signal Control (PPWM)
  • Over-Voltage Protection
  • Automatic Temperature Control (TPWM)
  • Manual Variable Resistor Control (RPWM)
  • Current Limit Control
  • Constant Speed (Fixed)
  • Constant Speed (Programmable)



Please contact one of our knowledgeable technical sales consultants to discuss your needs in detail.

Let us put our experience and expertise to work.
