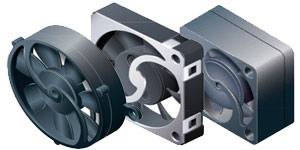

Micro Fans

Pelonis Technologies' innovative Micro Fans are uniquely engineered for high quality, value and performance to meet the needs of today's demanding applications.

THE NEED FOR MINIATURE COOLING

Today's industries for cooling products require devices that are increasingly smaller, lightweight, have low power consumption, and reduce heat generation.

Micro Fans are ideal thermal cooling solutions for applications that have limited space with restricted power budgets. They manage heat generation effectively, are energy efficient, and have a long operating life.

Micro Fans Quick Reference Chart

Model	V	Bearing	Range (V)	mA	RPM	CFM	m3/min	mmAq	inH2O	dba
BRA3008	3.3 5	Axially-Grooved	2.8~3.6 4.5~5.5	45 65	4500 6200	1.89 2.60	0.054 0.074	1.38 2.62	0.054 0.102	17 22
RFA1504	3.3 5	Axially-Grooved	2.8~3.6 4.5~5.5	30 42	10000 16000	0.30 0.40	0.008 0.011	1.5 2.8	0.059 0.110	25 <35
RFA1504U	2.4	Axially-Grooved	2.4~3.3	8	5000	0.07	0.002	0.21	0.008	20
RFA1708	3.3 5	Axially-Grooved	2.8~3.6 4.5~5.5	60 90	12000 16000	0.74 1.00	0.02 0.03	2.4 4.28	0.09 0.17	12 18
RFA1804	3.3 5	Axially-Grooved	2.8~3.6 4.5~5.5	32 45	8500 13000	0.65 0.90	0.02 0.03	1.95 3.5	0.07 0.14	25 <35
RFB1804 Micro Blower	3.3 5	Axially-Grooved	2.8~3.6 4.5~5.5	35 50	7000 11000	0.14 0.20	0.004 0.005	2.44 5.16	0.09 0.20	25 <35
RFB2008NL/N Micro Blower	3.3 5	Axially-Grooved	2.8~3.6 4.5~5.5	75 130	11000 14000	0.66 0.84	0.019 0.024	3.7 5.97	0.145 0.235	14 18
RFB3004 Slim Micro Blower	3.3 5	Axially-Grooved	2.8~5.5	50 75	6000 8500	0.57 0.87	0.016 0.025	2.91 6.67	0.114 0.263	28 36
RFB3004H Slim Micro Blower	5	Axially-Grooved	2.8~5.5	140	11000	1.15	0.033	12.29	0.484	33

Axial Air-Gap Cooling

Traditional blowers include silicon steel motors with radial air-gaps. Miniaturization is difficult, operation is inefficient, and power loss is greater at higher temperatures. By using Axial Air-Gap Technology, Micro Fans are smaller and more energy efficient than traditional blowers and have almost no power loss at higher temperatures. Micro Fans can be used in a variety of applications, including:

Portable medical devices Portable computers and electronics LED lighting Smartbooks and tablets Portable HDD IP cameras High-speed memory modules CCTV security surveillance systems Pocket projectors Micro fuel cells GPS devices Portable gas/particle detectors Portable plasma generators Portable air-quality monitoring devices Ventilation and defrosting Mask/Helmet/Glass ventilation Solar and wind energy devices Micro Fans are ideal alternatives to traditional fans and can be customized to satisfy a variety of applications that require an effective minature cooling station.
